The 1977 Black Beauties were the first ones Ludwig had made since 1940. They were offered in 14"X5" and 14"X6.5" with a p-85 throw, and also Ludwig offered these in Super Sensitive model too. The shell was made of a single sheet of brass drawn and spun into a seamless construction. The black chrome plating gave it the striking appearance. These drums were provided with the Blue and Olive badge and an internal muffler. Factory machine engraving was offered in 1979. These 1970s Black Beauties are great collector drums.
1935-36 Ludwig & Ludwig Silver Anniversary Black Beauty
By Mike Curotto

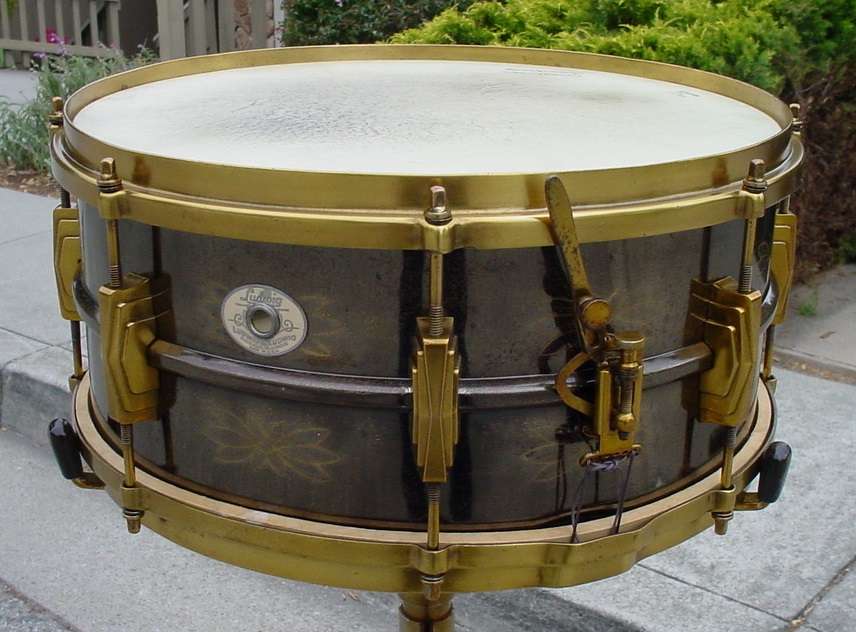

1935-36 LUDWIG & LUDWIG 6.5 x 14 SILVER ANNIVERSARY BLACK BEAUTY
Hi all,
Here’s another snare that I was able to add to the collection...fresh from the 2015 Chicago Vintage Drum Show. I got this drum from Joe Luoma, he had one to spare so we sealed the deal over the phone 3 weeks prior to the Show and culminated the deal at the Show. Thanks goes to Joe for helping me to add another cool and very rare drum to my collection. Joe’s drums are always pristine so this was an easy cleaning.
The SHELL:
The “sparse” later 1930s 10 pt. floral engraving pattern is clean and in good shape. The black nickel is also in good condition with some normal “freckling” that is to be expected on an 80 year old drum. I just gave the shell a minor cleaning with some lemon oil and all is good.
The HARDWARE:
Around 1932 Ludwig changed their Artgold (bright copper plating /gold lacquer) DeLuxe hardware option to Classic Gold (brass plating/ yellow gold lacquer). The Classic Gold on this snare drum was in very good condition and only needed a basic cleaning. The threads on the tension rods needed the most cleaning. One side of one of the tapped Imperial lugs was stripped but my good friend Al Schneider, The Drum Doctor, did his magic with a 12-24 Heli-Coil and as I’ve mentioned before, do not let stripped “Anniversary” lugs be a deal killer, there is a fix, a 12-24 Heli-Coil is the correct fix.
Of-the-era calf heads (note the tone control stamp on the top head) and James Snappi wires rounded out this simple cleaning.
Silver Anniversary Black Beauties are extremely rare, there are only 5 known at this writing and every one is different but I do realize that there is always the possibility that there are others out there. Be sure to weigh-in if you see or hear of another Silver Anniversary Black Beauty out there in vintage drum land.
Here’s a list of the 5 known Silver Anniversary Models:
- 5 x 14 gold plated Standard Model (Joe Luoma Collection)
- 5 x 14 gold plated Super-Ludwig Model (Joe Luoma Collection)
- 6.5 x 14 chrome plated Standard Model (Bun E. Carlos Collection)
- 4. 5 x 14 chrome plated Super-Sensitive Model (Mike Curotto Collection)
- 6.5 x 14 Classic Gold Standard Model (Mike Curotto Collection)
Enjoy!
John Aldridge Engraved Black Beauty
"A Drum Geek Xmas" Here's a nice gift. My wife and kids had my Ludwig Brass on Brass Black Beauty engraved by master engraver John Aldridge. The really cool thing is that John sneakily engraved my daughters names inside two leaves of the scroll pattern. I'm so thrilled with it, I had to share.
Happy Holidays, David
The Tuxedo & Black Beauty
“No Drum Left Behind" - the restoration of an engraved 1920sC.G. Conn Tuxedo and early 1930s Ludwig & Ludwig Black Beauty
There comes a time when every vintage drum collector finds a “diamond in the rough” and has to decide either to: 1) keep it original (but flawed), 2) do some restoration work, or 3) walk away from the deal. From a purist’s perspective, any change to a vintage drum will greatly diminish, if not destroy, its value. However, I would argue that there are times when salvaging a drum through expert restoration is truly warranted. Here are two such examples…
Some time ago, I stumbled across two such “rough diamonds” on Ebay. One auction had no other descriptor than “1920s-30s C.G. Conn 5X14 Brass Snare Drum.” I looked closely at the pics by eye and thought I saw some engraving on the shell. To examine it further, I downloaded the auction pics and zoomed in using Photoshop. Lo and behold, it looked like a 1920s C.G. Conn engraved Tuxedo with the characteristic four diamond cross pattern! The inside of the shell still retained the black nickel so I was pretty certain the outer black nickel plating had been removed. I won the auction for a very reasonable amount, so the thought of black nickel re-plating seemed like a worthwhile investment. When the drum arrived, my presumptions were confirmed. It was indeed an 8-tube lug, 1920’s Conn Tuxedo with “Made by C.G. Conn LTD, Elkhart, IN U.S.A.” stamped on the upper hoop, 4-screw “Presto-like” strainer, Knobby Gold hardware and shell engraving in beautiful condition. Next, I set about to do some research on what it would take to properly restore this drum. I needed to think long and hard about this, as it required additional investment and had to be done correctly if done at all. Meanwhile, another orphan drum serendipitously crossed my sights on Ebay.
This time, the drum was clearly identified as a “1920s-1930s engraved Ludwig Black Beauty.” The early 1930s art gold hardware looked amazingly well preserved for its age: 10 brass tube lugs, timepiece strainer; smaller, more rounded snare gates, “Super-Ludwig” embossed on the bottom hoop in block letters. The logo engraved on the shell was somewhat unusual, reading “Ludwig – Trademark” rather than the usual “Ludwig, Chicago U.S.A.”, and bounded by a rectangular box (actually, a parallelogram as I was corrected by my daughter) one panel to the left of the strainer. The catch was that the engraving was thoroughly blackened with none of the brass visible. During its lifetime, the drum had either been painted black or poorly re-plated. I took a gamble and placed a winning bid, hoping that there was some original black nickel underneath. When I got the drum, I sent pics out to Mike Curotto and Harry Cangany for their thoughts on the shell. None of them could be certain from the pictures whether it was black paint or nickel. So off the drum went to Mike Curotto’s shop for closer examination. A short time later, Mike gave me the unfortunate news - the drum had been painted and no black nickel remained.
This now left me with two wonderful vintage drums whose hardware was in great shape, the original engraving intact, but stripped down to the brass. I consulted Harry Cangany about restoration, weighing the concerns of valuation/devaluation vs. preservation. I finally came to the conclusion that these two drums needed to be brought back to life, to the way they looked in the 1920s and 30s (fortunately, Harry agreed ☺). This was not about vintage drum investment but more so about preserving our drum heritage.
I was convinced re-plating was the right thing to do. So, I contacted the amazing drumsmith, Adrian Kirchler (“AK”), in Italy. I was aware that AK not only made great drums for Ludwig (100th Anniversary Triumphal) and Craviotto (AK/Craviotto Masters Metal series, 10th Anniversary Black Diamond) but also was the only craftsman in the world who could re-plate engraved drums and leave the engraving shining brightly through the black nickel. Mike, who had the drums in his shop, kindly sent them shells to Adrian for re-plating. Mike kept the hardware to polish/buff up and spray a coat of clear lacquer. As Mike says, “rust never sleeps."
About six weeks later, the drums arrived at my home. I think the pictures speak well to the outstanding work of AK, together with the gentle, expert cleaning by Mike Curotto. I have no regrets. The drums are beautiful. They have been kept intact with original or period-correct hardware and original engraving. However, now the artistry of the engraving glistens against contrasting dark, black nickel as it once did almost century ago. The drums are whole again. I feel content that two drums have been saved from the scrap heap, and now serve as gleaming historical artifacts of early drum craftsmanship. I guess it’s the next closest thing to a time machine… I just wish I could bring back the original owners in order to hear how the drums sounded in their hands. I’ll just have to settle with playing them myself and pretending…
Best wishes, Bob
Many thanks to Harry Cangany, Mike Curotto and Adrian Kirchler who kindly provided guidance, encouragement and their talents to this project.
Ludwig & Ludwig New-Era Sensitive DeLuxe
Hi All,
The Ludwig & Ludwig New-Era Sensitive DeLuxe Model is extremely rare. There are only 4 known examples as of this writing. These 4 known examples are all accounted for: The first example is in the University of Mississippi Museum, the second example is in a private collection in the eastern part of this country, the third example resides in my collection and the 4th and most recent example known to exist in now in the Robert Campbell Collection.
I first heard of this drum from my good friend John Aldridge. Aside from being a vintage drum historian, a world class engraver and an all around plethora of knowledge, John is also the drum tech for the previous owner of this drum, Bryan Hitt of REO Speedwagon. The drum was definitely “ridden hard and put up wet” but it was still a diamond in the rough. I already have one of these drums but I couldn’t stand the thought of letting this drum fall by the wayside so the “drum rescuer” in me set out to bring this drum back to life. Robert Campbell buys high end snare drums so I presented the idea of getting this drum restored and getting it into Robert’s collection. It was a pretty easy sell as I truly feel that this drum was worth the effort.
This model never made it to a Ludwig & Ludwig catalog and the only mention of the New-Era Sensitive model is in the Fall 1929 Ludwig Drummer Magazine.
1929-30 LUDWIG & LUDWIG 5 x 14 NEW-ERA SENSITIVE DeLUXE (BLACK BEAUTY) MODEL
THE SHELL:
The engraving is the 1929-only 10-point flat-top double-leaf floral pattern. The shell was in good shape with no major digs or dents but the original clear coat lacquer was in bad shape so I stripped the original lacquer down to the black nickel. After cleaning and polishing the black nickel I took the shell to Brian at Avenue Plating for a new lacquer clear coat. The shell came out great, looks clean but still looks its age. At some point there was a heater/light fixture right below the factory air hole...all together now 1, 2, 3: “why didn’t the owner of yesteryear simply use the existing air hole?" I was able to use some of my older heater/light fixture parts so the after-market heater/light fixture looks authentic.
THE HARDWARE:
Ninety-five percent of the L & L DeLuxe Art Gold lacquer finish was long gone and there was a significant amount of tarnish present so I needed strip the remaining lacquer or what was left of it. There was enough of the original copper plating left to work with but I needed Les at Avenue Plating to clean the tarnish down to the original copper plating. Les came through like a champ and I was then able to polish up the copper and then gold lacquer everything. The hardware turned out great but like the shell, still looks age-appropriate.
Even though this is not one of my personal drums that would have been added to my collection I still felt that this very rare drum needed to be restored for another collector to enjoy.
Enjoy!
Mike Curotto
